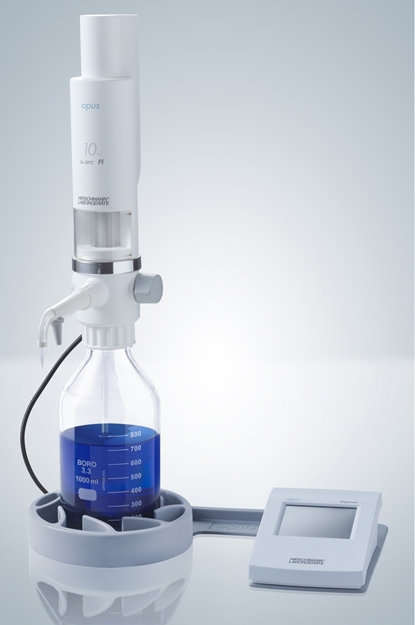

A dispenser with a reagent recirculation system for motor-powered dispensing directly from the reagent bottle. Available in three volumes (10 ml, 20 ml and 50 ml).

Simplify the laboratory routine while still working with high precision - combining functionality and user-friendliness with functional reliability and efficiency. Serial dispensing procedures with consistent reliability of results can also be realised through electronic control - up to 9999 times if required. A standard stepper function enables the dispensing of several partial volumes (which may vary) from a single cylinder charge. Sophisticated details facilitate control. The dispensing procedure is configured on the intuitive TFT touchscreen. The user is guided through menu functions which are easily legible and comprehensible. Nine different dispensing procedures with their complete settings can be saved in the method memory and reactivated at any time if required.

Overview of details:

• Electronic control and dispensing of volumes
• A light protection window for the valve block is also included in the scope of delivery
• TFT touchscreen with user-friendly menu
• Method memory for nine different dispensing procedures with storage of all settings
• Serial dispensing up to 9999 times
• Standard stepper function
• Media recirculating system for simple and rapid venting without reagent loss
• Free rotation
• Superior materials and reliable piston sealing, even in the case of problematic media
• Brown glass cylinder available for light-sensitive media
• USB and RS232 interface for PC connection
• Integration in automated procedures possible

• Code-No.	Description
  9581010	opus dispenser 10 ml, 100-240 Volt
  9581020	opus dispenser 20 ml, 100-240 Volt
  9581050	opus dispenser 50 ml, 100-240 Volt
