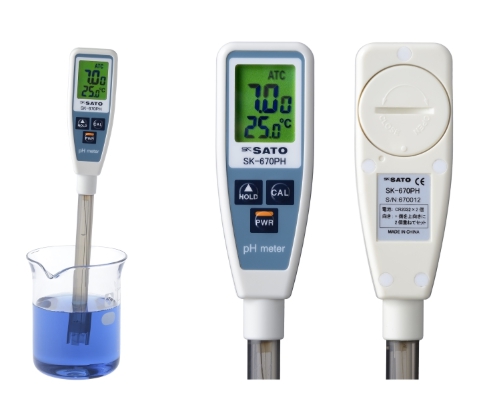

Pen type digital PH meter. Slender rod shaped sensor section can be directly inserted into a flask or a small container at measurement. Waterproof rate is IPX4. Availble to operate the unit with wet hands (function will not be affected). The sensor is not replaceable.
* This model is not usable for certification purpose
| Measuring factors | Hydrogen iron concentration, Liquid temperature | |
| Display range | pH | 2.00 to 12.00pH |
| Temp. | 0.0 to 50.0°C | |
| Accuracy | pH | ±0.20pH |
| Temp. | ±1.0°C | |
| Resolution | pH | 0.01pH |
| Temp. | 0.1°C | |
| Functions |
(1) 3 points calibration (pH 4.01, pH6.86 and pH10.01 at 25°C) |
|
| Waterproof rating | Conforming to JIS C 0920 IPX4 | |
| Operation ambient | Temp.: 0 to 50°C Humidity: less than 80%rh (no condensing) | |
| Power requirement | Coin lithium battery CR2032 x 2 pcs. | |
| Battery life | Continuous measurements for about 400 hours | |
| Materials | Main body: ABS resin Sensor electrode: glass | |
| Dimensions |
Unit including probe: (W)36×(H)224×(D)20mm Sensor section: 12mm dia. × (L)115mm |
|
| Weight | approx. 63g (including batteries) | |
| Accessories |
(1) Coin lithium battery No. CR2032 2 pcs. (2) Glass electrode protection bottle 1 pc. (3) Instruction manual |
|
